Ogle – X2
Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage Protection | : | 80 Vac |
| Withstand Voltage | : | 440 Vac For 8Hrs |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | < 15% |
| Efficiency | : | > 85% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Working temperature (ta) | : | -20°c to +50°C |
| Case temperature (tc) | : | +75°C |
| SAFETY standards | : | IS 15885 (PART2/SEC13), |
| Dimension (L*W*H)(MM) | : | 80*40*22 |
| Connections | : | Connector for Input & Output |

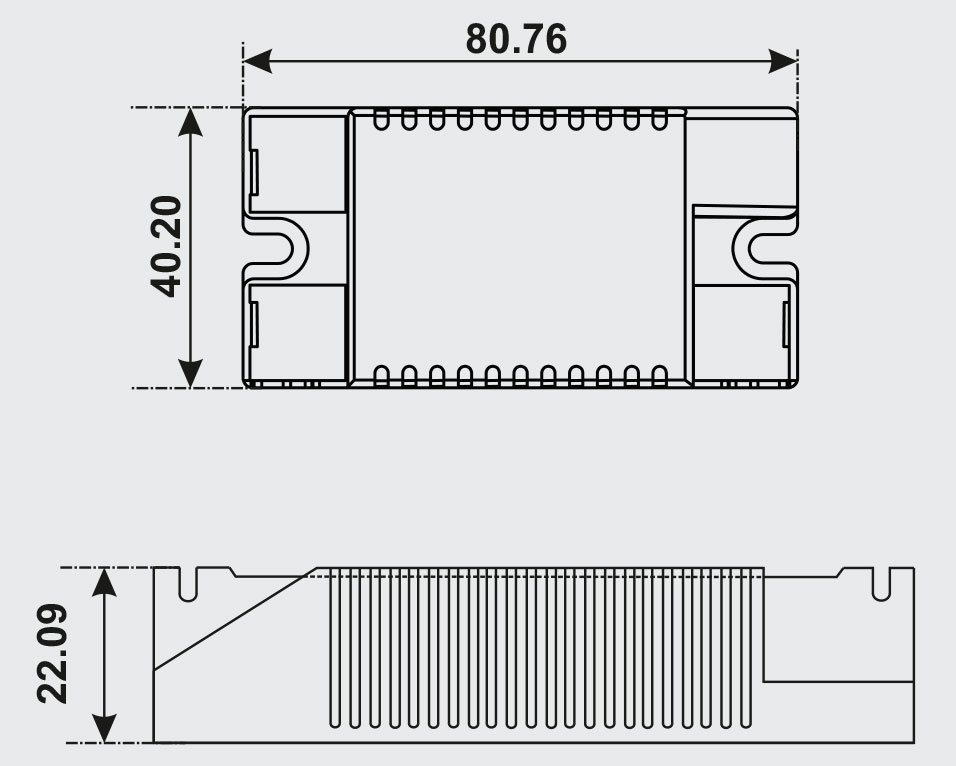

Dimensional Details
Features
- Protection : Output Short Circuit, No Load, Over voltage, Under voltage
- Built-in active PFC function
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 4 KV surge immunity level ( IEC61000- 4-5 )
- Class 2 power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor LED lighting
- 3/5 Years warranty
Electrical Specifications
OGLE - X2 ( Input 4-27 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 V | 150-600 mA | 3W – 24W |
| 02 | 40-60 V | 200-350 mA | 3W – 24W |
| 03 | 60-80 V | 200 -300mA | 3W – 24W |
