Rigel – X10
Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +!- 10 V ) |
| Under voltage protection | : | Yes. 90 Vac ( +!- 10 V ) |
| Thermal protection | : | Yes. 110°c +/- 10°C |
| THD | : | < 10% |
| Efficiency | : | > 88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +85°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 : Ed1206-5 |
| Connections | : | Connector for Input & Output |
| Dimension (L*W*H)(MM) | : | 202.5*31.5*27 |

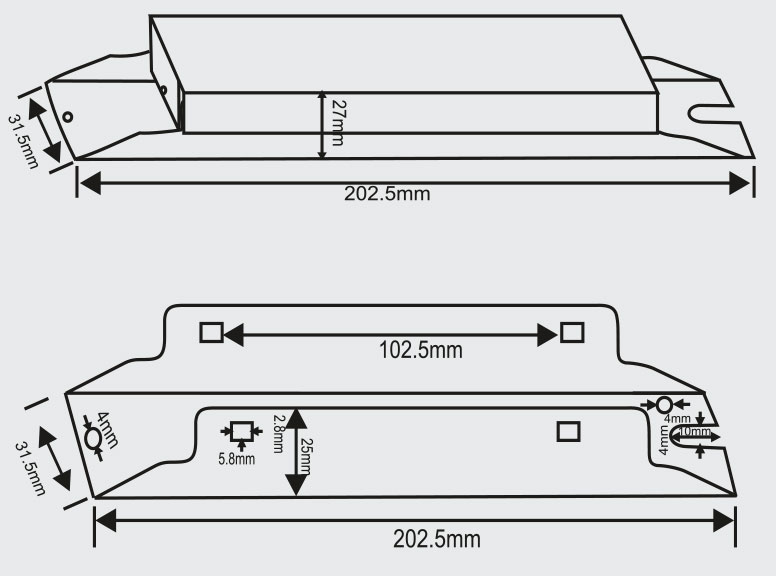

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, No load
- Buit-ln Active PFC Function
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Class I power units I pass LPS
- Microwave Radar Sensor for Motion Detection Ideal 20% Dim after Sensing 100%/On-Off
- Radar induction
- Radar detection: catch body moving precisely
- Start fast & stable working
- Radar Sensor detection distance range: 3-8meters
- Suitable for dry, damp & wet location
- Suitable for Indoor/Clean room LED lighting applications
- 3/5 Years Warranty
Electrical Specifications
RIGEL - X10 Sensor Based ( Input 20-45 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 V | 300-950 mA | 20W – 40W |
| 02 | 40-60 V | 300-650 mA | 20W – 40W |
| 03 | 60-80 V | 300-500 mA | 20W – 40W |
