Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 1O V ) |
| Under voltage protection | : | Yes. 110 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°C +/- 10°C |
| THD | : | <10% |
| Efficiency | : | > 88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature  (ta) | : | -20°c to +S0°C |
| Case temperature (tc) | : | +7S°C |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 : |
| Connections | : | Connector for Input & Output |
| Dimension (L*W*H)(MM) | : | 93*58*31 |

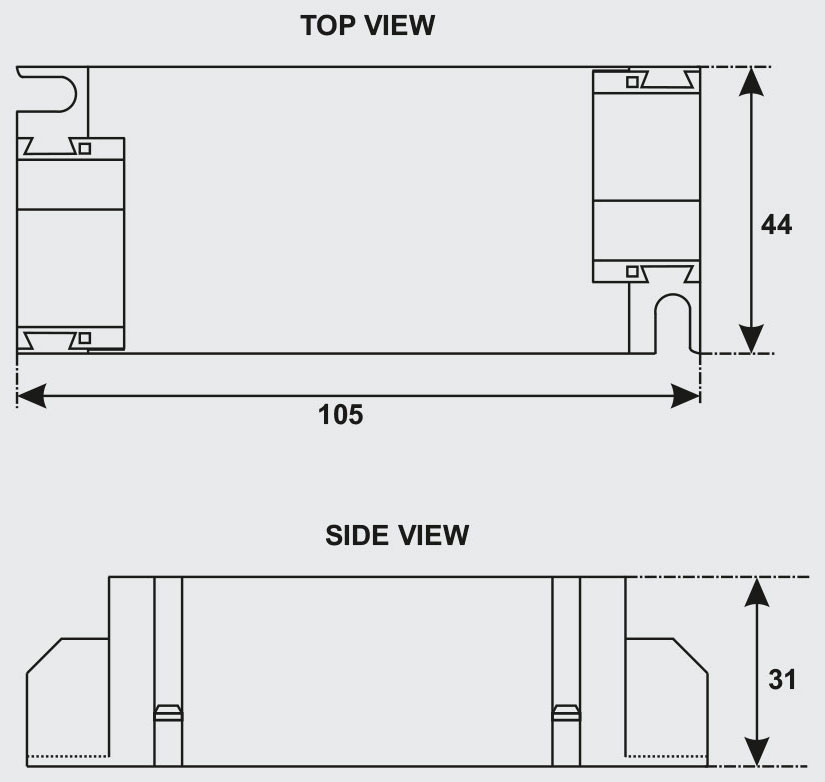

Dimensional Details
Features
- Protection : Output Short Circuit, Over voltage, Under voltage, No load
- Built-in active PFC function
- IP 20 design Universal input (up to 300 Vac)/full range
- Meet 4 KV surge immunity level ( IEC61000- 4-5 )
- Class 2 power units / pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor I Outdoor LED lighting
- 3/5 Years warranty
Electrical Specifications
OGLE - XS ( Input 15-40 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
01 |
25-40 v |
300-1000 mA |
14W – 36W |
02 |
40-60 v |
300-600 mA |
14W – 36W |
03 |
60-80 v |
300-450 mA |
14W – 36W |
