Technical Specifications
| Solar Panel-Open Circuit Voltage | : | 30V MAX |
| Solar Panel-Max Power Point Voltage | : | 16.70 – 18V |
| Solar Panel-Nominal Power | : | 45W-150W |
| Charger Type | : | MPPT CC/ CV |
| Battery Type | : | Li-Fe-P04 |
| Battery Charger Float Voltage | : | 14.60VDC |
| Battery Over Charge Cut-off | : | 14.70V |
| Battery Charger Efficiency | : | 91-93% |
| LED Driver Efficiency | : | 90-92% |
| Battery Under Voltage (Load Disconnect) | : | 11.00-11.40V |
| Protections | : | Battery Reverse Polarity, Reverse Flow of Current into/From SPV, Solar Panel Reverse Polarity, LED Load open Circuit, LED Load Short Circuit, Battery Under Voltage |
| Indications | : | Charging under progress Charge Completed Battery Under Voltage |
| Connections | : | Connector |
| Dimension (L*W*H)(MM) | : | 90*60*37 MM |

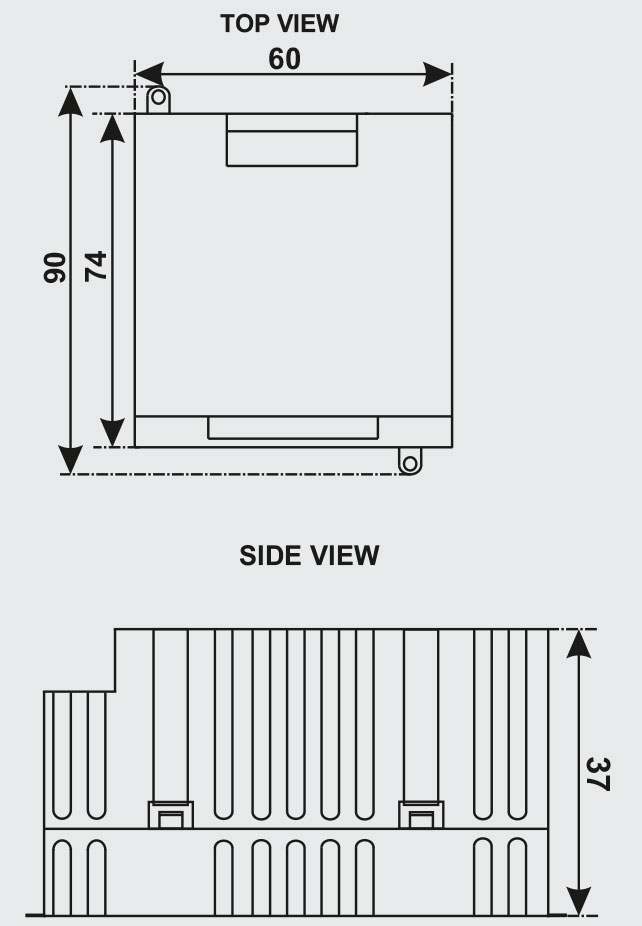

Dimensional Details
Features
- Maximum Power Point Tracking (MPPT) charging technology
- Solar Street Light Driver with Integrated MPPT Charger
- Supports solar panels from 45W to 150W
- Auto dusk to down switching control
- Compatible With 4 Years lithium-ion ferrous phosphate Pack (Li-Fe-PO4)
- Charging and Battery Full Indication
- 4 Battery Charging Mode – Deep Discharge/Boost/Absorption/Trickle Mode
- Supports 6 to 36W of LED power, with LED voltage of 24V
- Greater than 90% Efficiency
Electrical Specifications
| Parameters | 7-12W MPPT Solar Light Charge Controller | 12-20W MPPT Solar light Charge Controller | 20-SOW MPPT Solar light Charge Controller |
| Suitable for LED load | 7W to 12W | 12W To 20W | 20W to 30W |
| LED Output Voltage | 9V | 9V | 18V/36V |
| Suitable Battery | LI-ion, Life-po4, Lead Acid | LI-ion, Life-po4, Lead Acid | LI-ion, Ufe-po4, lead Acid |
| Suitable Solar Panel | Upto 40W/ 12V | Upto 100W/12V | Upto 100W/ 12V |
| LED Driver Efficiency | >93% | >93% | >90% |
| MPPT Efficiency | >93 % | >93% | >93% |
| Size (LXWXH) | 60x 45 x 35 | 70X57X33 | 70X83X33 |
| Operating Temperature | 0 to 85°C | 0 to 85°C | 0 to 85°C |
| Storage Temperature | 0 to 85°C | 0 to 85°C | 0 to 85°C |
| Dusk to Down | Available | Available | Available |
| PIR Motion sensor interface | Available | Available | Available |
| No load Current Consumption | <l5 mA | <l5 mA | <20mA |
| Parameters | 40-60W MPPT Solar light Charge Controller | 60- 120W M PPT Solar Light Charge Controller |
| Suitable for LED load | 40 to 60W | 60 to 120 W |
| LED Output Voltage | 18V/36V | 36V |
| Suitable Battery | LI-ion, Life-po4, Lead Acid | Life-po4, Li-ion & Lead Acid |
| Suitable Solar Panel | Upto 200W/ 12V | 12V- 200W/24V-350W |
| LED Driver Efficiency | >90% | >90% |
| MPPT Efficiency | >93% | >90% |
| Size (LXBXH)mm | 140X80X48 | 140X80X48 |
| Operating Temperature | 0 to 85°C | 0 to 85°C |
| Storage Tern perature | 0 to 85°C | 0 to 85°C |
| Dusk to Down | Available | Available |
| PIR Motion sensor interface | Available | Available |
| No load Current Consumption | <20mA | <30mA |
