Technical Specifications
| Voltage (Un) | : | 12Vdc I 24 Vdc I 48Vdc / 110Vdc |
| Operating input voltage range | : | 12V -24Vdc |
| Minimum Starting Temp. (ta) | : | -20°C to +50°C |
| Maximun ambient Temp. (tc) | : | +75°C |
| Connections | : | Wires for Input & Output |
| Dimension (L*W*H)(MM) | : | 105*46*30 |

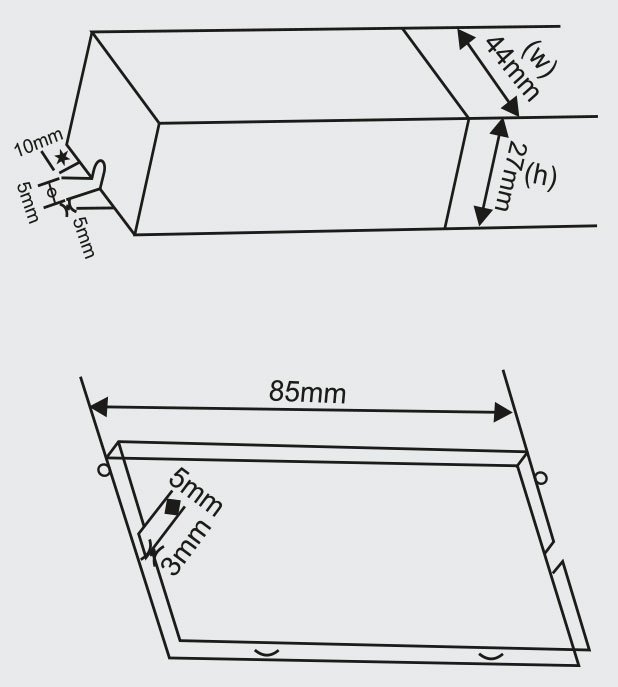

Dimensional Details
Features
- Protection : Short Circuit, No load
- Thermal Protection
- Operates in boost topology
- IP20/65 Design DC Input Up to 30Vdc
- Suitable for Indoor/Outdoor LED Application
- 3/5 Years Warranty
Electrical Specifications
DC-DC LED Driver ( Input 25 - 45 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 30-40 V | 500-1000 mA | 40W |
