Technical Specifications
| Operating input voltage range | : | 90-300 Vac; 50/60 Hz |
| Load I Line Regulation | : | +/-3% |
| Thermal protection | : | Yes. 110°C +/- 10°C |
| THD | : | < 20% |
| Efficiency | : | >85% |
| PF | : | > 0.95 |
| Over Temp. Protection | : | 125°C ±1o0c |
| Operating thermal temp. (tc) | : | 75°C |
| Operating temp. Range(ta) | : | -30 to 50°C |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature  (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| SAFETY standards | : | IS 15885( Part2/Sec/ 13) IEC 61347-2-13 |
| Connections | : | Wire for INPUT & OUTPUT |
| Dimension (L*W*H)(MM) | : | 55*32*20 |

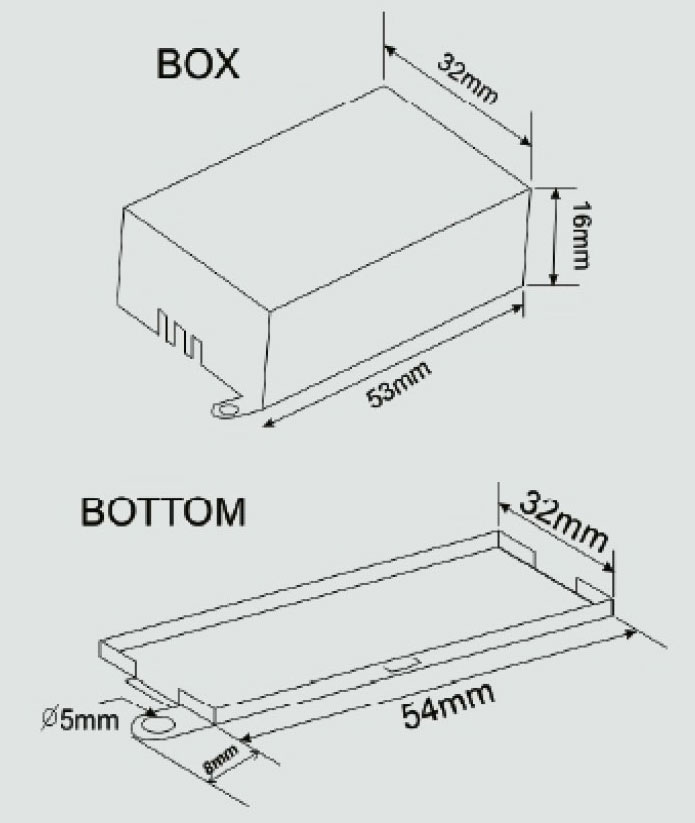

Dimensional Details
Features
- Protection : Short Circuit, No Load ,Over Temperature
- Built-in active PFC function
- IP20 Design Universal AC lnput(Up to 300Vac)
- Meet 4kV Surge Immunity Level (IEC61000-4-5)
- Suitable for Indoor LED Lighting
- 3 Years Warranty
Special Features
- Integrated Input OVP, when input voltage is higher than 375Vac, turns off the power switch, resumes at input voltage below 320Vac. Enhances anti-surge capability and improves system reliability.
- LED Panel Colors can be changed with the flip of the electric switch. Colours can be set as per desired Cool White or Warm White or Natural White.
Electrical Specifications
OGLE - X8 (CCT SWITCH DIMMABLE (08-20W))
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
01 |
30-50 v |
200-300 mA |
6W – 15W |
02 |
50-80 v |
200-250 mA |
10W – 20W |
