Technical Specifications

Operating input voltage range	:	100 -300 Vac; 50/60 Hz; 140-300 Vdc
Over voltage protection	:	Yes. 320 Vac ( +/- 10 V )
Under voltage protection	:	Yes. 90 Vac ( +/- 10 V )
Thermal protection	:	Yes. 110°C +/- 10°C
THD	:	< 10%
Efficiency	:	> 88%
PF	:	> 0.98
Standard loss	:	0.3 Watt
Withstand Voltage	:	440 Vac
Working temperature (ta)	:	-20°c to + 50°c
Case temperature (tc)	:	+75°c
SAFETY standards	:	IS 15885 (PART2/SEC13), IEC 61347-2- 13: Ed 1206-5 IEC 60950, IS 16104
Connections	:	Connector for Input & Output
*Dimension (LWH)(MM)*	:	3301918

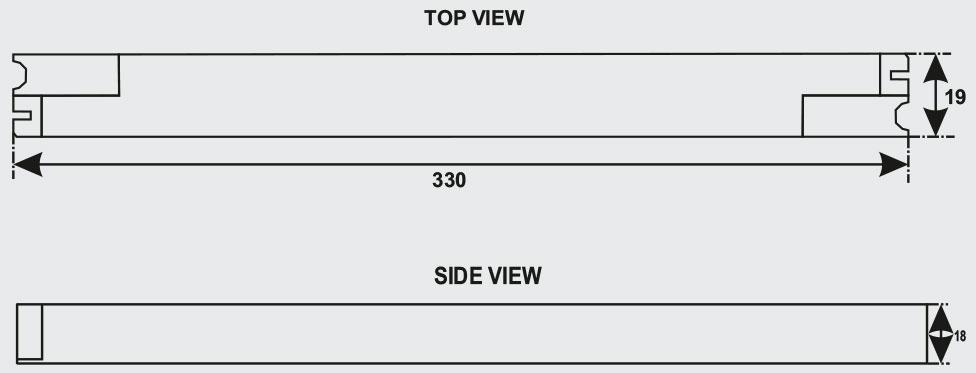

Dimensional Details

Features

Protection : Output Short Circuit, Over voltage, Under voltage, No load
Buit-ln Active PFC Function
IP 20 design Universal input (up to 300 Vac)/full range
Meet 4 KV Surge Immunity Level (IEC61000-4-5)
Class 2 power units I pass LPS
Suitable for dry, damp & wet location
Suitable for Indoor I Outdoor LED lighting
3/5 Years Warranty

Electrical Specifications

P1- RIGEL - X16 ( Input 5-45 Watt)

Serial Number	Output Voltage Min- Max	Output Current Min- Max	Output Wattage Min- Max
01	25-40 V	200-1000 mA	4W-45W
02	40-60 V	200-700 mA	4W-45W
03	60-80 V	200-500 mA	4W-45W

P2- RIGEL - X16 ( Input 5-45 Watt) With Multi Current

Configuration
PIN1	PIN2	Iout {mA}	Pout {W)	Vout (V)
OFF	OFF	200mA	8W	25-40V
ON	OFF	300mA	12W
OFF	ON	400 mA	16W
ON	ON	500mA	20W

Configuration
PIN1	PIN2	Iout {mA}	Pout {W)	Vout (V)
OFF	OFF	700mA	28W	25-40 V
ON	OFF	800mA	32W
OFF	ON	900mA	36W
ON	ON	1000mA	40W

Configuration
PIN1	PIN2	Iout {mA}	Pout {W)	Vout (V)
OFF	OFF	400mA	24W	40-60 V
ON	OFF	500mA	30W
OFF	ON	600mA	36W
ON	ON	700mA	42W

Configuration
PIN1	PIN2	Iout {mA}	Pout {W)	Vout (V)
OFF	OFF	200mA	16W	60-80 V
ON	OFF	300mA	24W
OFF	ON	400mA	32W
ON	ON	500mA	40W
