Technical Specifications
| Operating input voltage range | : | 100 -300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 110 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°C +/- 10°C |
| THD | : | < 10% |
| Efficiency | : | > 88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13),
IEC 61347-2- 13: Ed 1206-5 IEC 60950, IS 16104 |
| Connections | : | Wires for Input & Output |
| Dimension (L*W*H)(MM) | : | 80*80*33 |

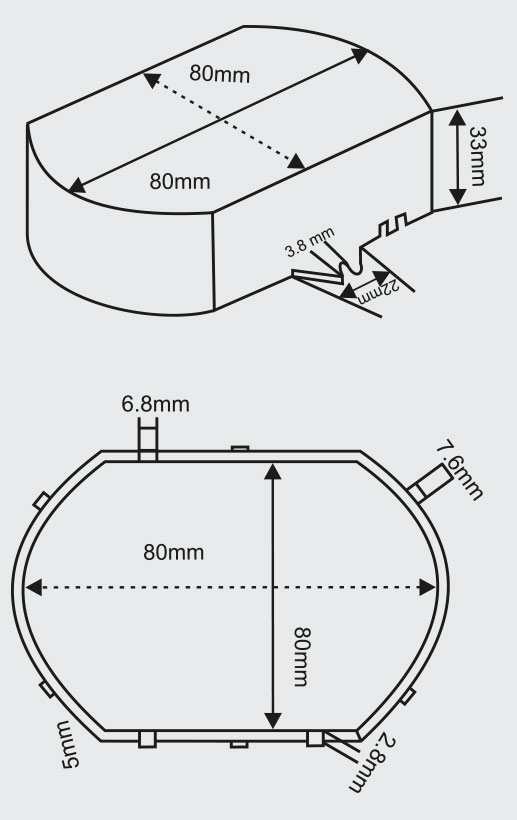

Dimensional Details
Features
- Protection : Output Short Circuit, Over voltage, Under voltage, No load
- Buit-ln Active PFC Function
- IP 20/65 design Universal input (up to 300 Vac)/full range
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Class 2 power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor I Outdoor LED Application
- 3/5 Years Warranty
Electrical Specifications
COPELLA - X1 ( Input 20-50 watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-36 V | 1000-1200 mA | 18W – 45W |
| 02 | 25-40 V | 300-1100 mA | 18W – 45W |
| 03 | 40-60 V | 300-650 mA | 18W – 45W |
| 04 | 60-80 V | 300-550 mA | 18W – 45W |
