Technical Specifications
| Operating input voltage range | : | 100-240 Vac; 50/60 Hz; 140-300 Vdc |
| Thermal protection | : | Yes. 110°C +!- 10°C |
| THD | : | < 10% |
| Efficiency | : | > 80% |
| PF | : | > 0.95 |
| Standard loss | : | 0.3 Watt |
| Inrush Current | : | Cold Start 15A |
| Working temperature (ta) | -20°C to + 45°C | |
| Case temperature (tc) | +75°C | |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 |
| Connections | : | Connector for Input & Output |
| Dimension (L*H)(MM) | : | 126*30*20 |

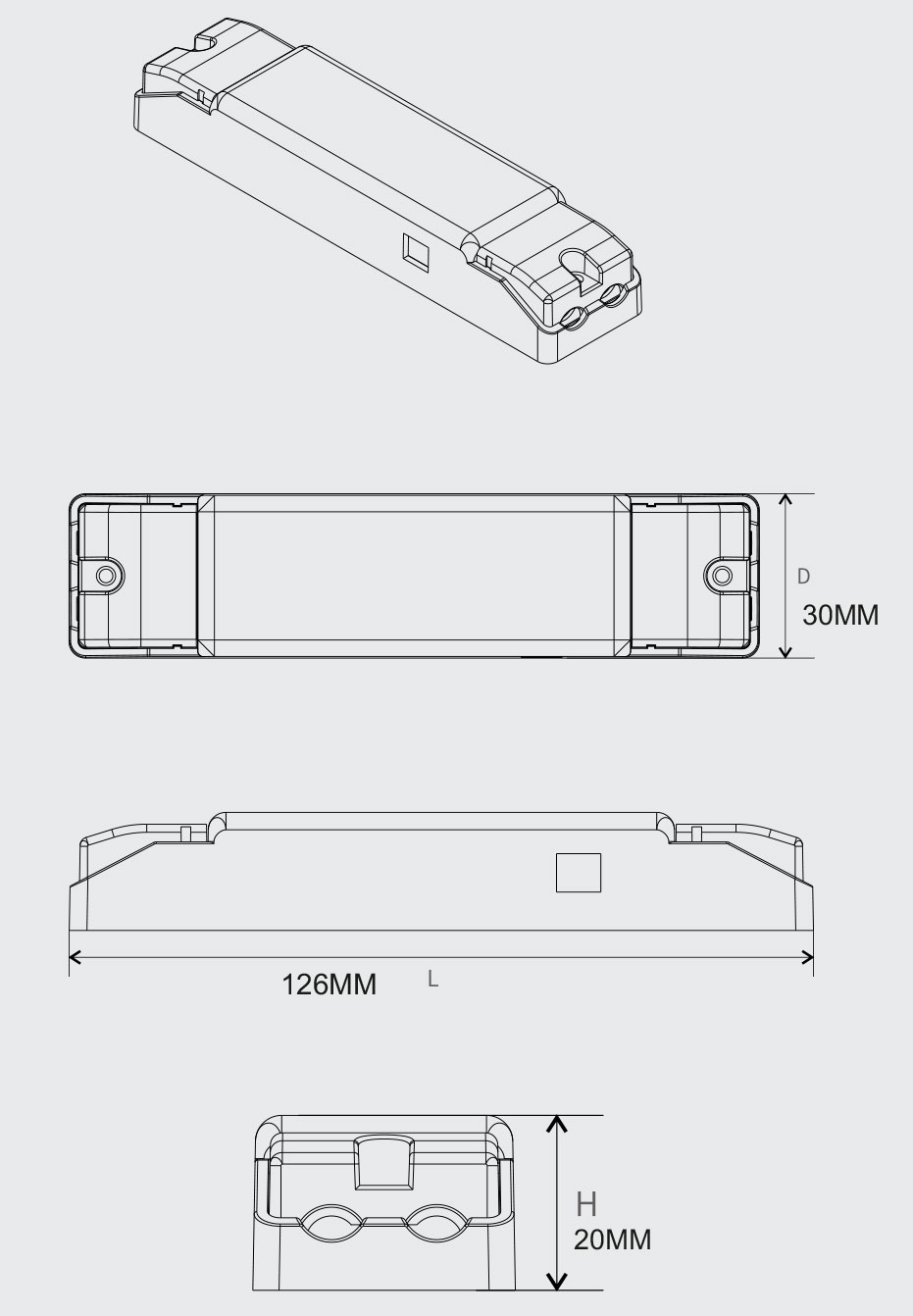

Dimensional Details
Features
- Protection : Output Short Circuit, No load
- Built-in active PFC function
- IP20 design AC input (up to 240 Vac)/Full range
- Class-2 power units I pass LPS
- Meet 1KV surge immunity level ( IEC61000- 4-5 )
- Suitable for Indoor LED Lighting
- 3/5 Years warranty
- Support DALl-2+PushDim
- Smooth dimming,flicker-free,dimming range 0.1-100%
- DIP switch for multi-current setting,Max. output power 12W
Electrical Specifications
DALI - X17 ( Input 3-15 Watt) Plastic Body
Number |
Output |
Switch Position |
|||||
Current
(mA) |
Voltage
(VDC) |
No Load Output Voltage (VDC) |
Power
(W) |
1 | 2 | 3 | |
| l | 150 | 9-40 | 59 | 6 | I | I | I |
| 2 | 200 | 9-40 | 8 | ON | I | I | |
| 3 | 250 | 9-40 | 10 | I | ON | I | |
| 4 | 300 | 9-40 | 12 | ON | ON | I | |
| 5 | 350 | 9-33 | 12 | I | I | ON | |
| 6 | 400 | 9-30 | 12 | ON | I | ON | |
| 7 | 450 | 9-27 | 12 | I | ON | ON | |
| 8 | 500 | 9-24 | 12 | ON | ON | ON | |
