Features
- IP20/65 design
- Good Reliability
- High sensitivity
- Fast response
- Made by semi-conductor material
- Auto dusk to down operations
- Conductance changes with luminance variation

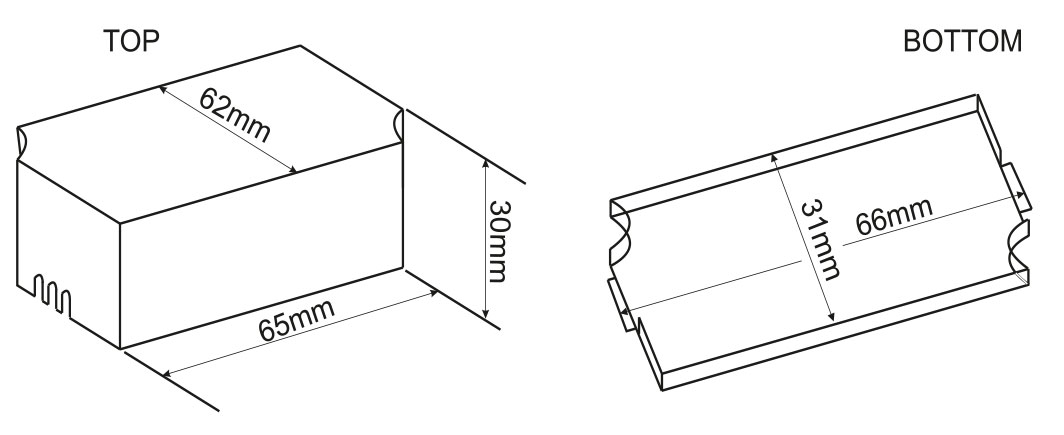

Dimensional Details
Characteristics
- On day time the typical resistance : 2KΩ -10KΩ,
- On night time the typical resistance : O.5MΩ -1.5MΩ
- On day time the typical voltage : 4V – 6V
- On night time the typical voltage : 9V – 13V
- Power consumption day time : up – 0.3W
Sensor Characteristics
LDR Module
| Light Resistance (10 Lux) (KΩ) | Dark Resistance (MΩ) | Y | Response Time | |
| Increase | Decrease | |||
| 5-10 | 0.5 | 0.5 | 30 | 30 |
| 10-20 | 1 | 0.6 | 20 | 30 |
| 20-30 | 2 | 0.6 | 20 | 30 |
| 30-50 | 3 | 0.7 | 20 | 30 |
| 50-100 | 5 | 0.8 | 20 | 30 |
| 100-200 | 10 | 0.9 | 20 | 30 |
