Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage Protection | : | 80 Vac |
| Withstand Voltage | : | 440 Vac For 8Hrs |
| Thermal protection | : | Yes. 110°C (+/- 10°C ) |
| THD | : | < 10% |
| Efficiency | : | > 85% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Working temperature (ta) | : | -20°c to +50°C |
| Case temperature (tc) | : | +75°C |
| SAFETY standards | : | IS 15885 (PART2/SEC13), |
| Dimension (L*W*H)(MM) | : | 80*40*22 |
| Connections | : | Connector for Input & Output |

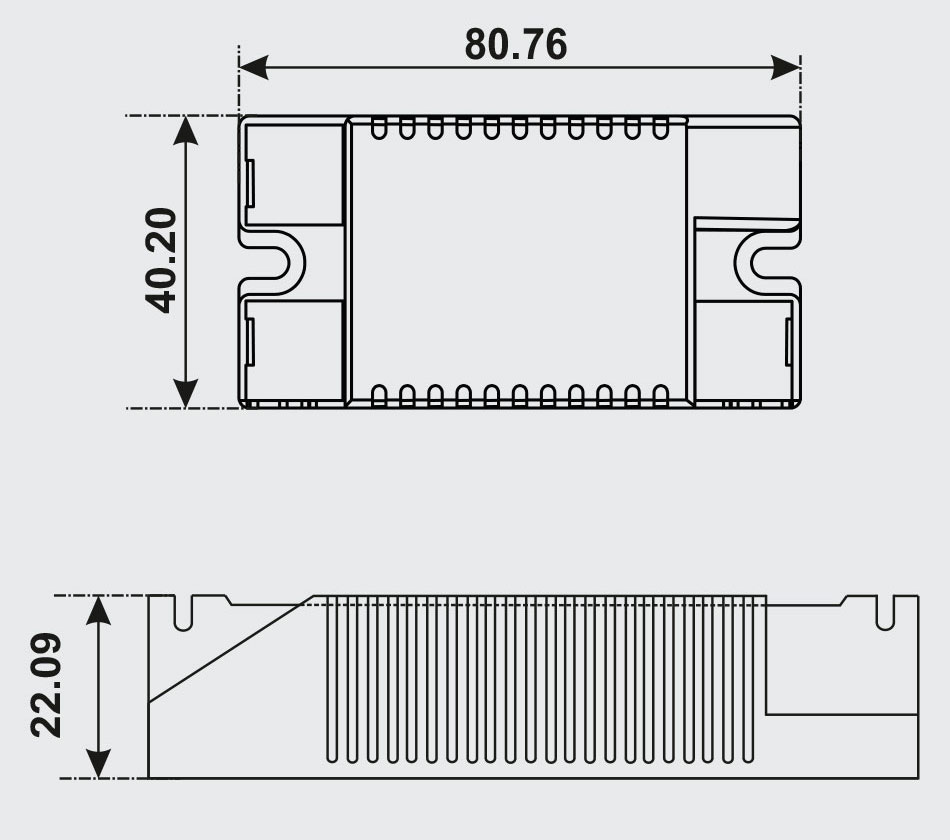

Dimensional Details
Features
- Protection : Output Short Circuit, No load, Over voltage, Under voltage
- Built-in active PFC function
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 4 KV surge immunity level ( IEC61000- 4-5 )
- Class 2 power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor LED lighting
- 3/5 Years warranty
Electrical Specifications
OGLE - X3 ( Input 4-27 Watt) With DIP Switch
| Configuration | ||||
| PIN1 | PIN2 | Iout (mA} | Pout (W) | Vout (V) |
| OFF | OFF | 150mA | 6W | 25-40 v |
| ON | OFF | 200mA | 8W | |
| OFF | ON | 250mA | 10W | |
| ON | ON | 300mA | 12W | |
| Configuration | ||||
| PIN1 | PIN2 | Iout {mA} | Pout (W) | Vout |
| OFF | OFF | 350mA | 14W | 25-40 v |
| ON | OFF | 400mA | 16W | |
| OFF | ON | 450mA | 18W | |
| ON | ON | 500mA | 20W | |
| Configuration | ||||
| PIN1 | PIN2 | Iout (mA) | Pout (W) | Vout |
| OFF | OFF | 150mA | 12W | 60-80 v |
| ON | OFF | 200mA | 16W | |
| OFF | ON | 250mA | 20W | |
| ON | ON | 300mA | 24W | |
| Configuration | ||||
| PIN1 | PIN2 | Iout (mA) | Pout (W) | Vout |
| OFF | OFF | 300mA | 12W | 25-40 v |
| ON | OFF | 400mA | 16W | |
| OFF | ON | 500mA | 20W | |
| ON | ON | 600mA | 24W | |
| Configuration | ||||
| PIN1 | PIN2 | Iout {mA} | Pout (W) | Vout |
| OFF | OFF | 250mA | 15W | 40-60 v |
| ON | OFF | 300mA | 18W | |
| OFF | ON | 350mA | 21W | |
| ON | ON | 400mA | 24W | |
