Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 90 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°C +/- 10°C |
| THD | : | <10% |
| Efficiency | : | >88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 |
| Connections | : | Wire for Input & Output |
| Dimension (L*W*H)(MM) | : | Plastic Body = 105*46*30 |
| Metal Body = 105*49*30 |

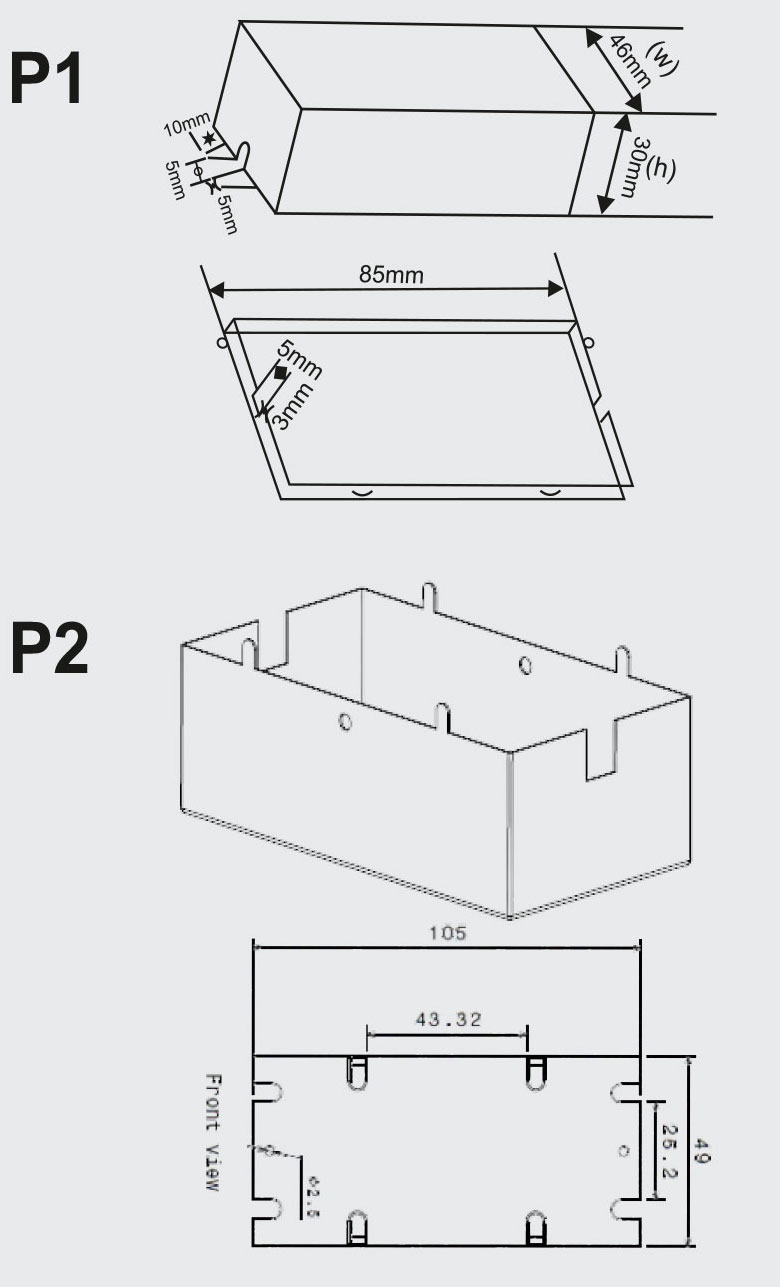

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under Voltage, No load
- Built-in active PFC function
- IP20/65 design Universal AC input (up to 300 Vac)/Full range
- Class 1/2 power units I pass LPS
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Suitable for Indoor/Outdoor LED Lighting
- 3/5 Years Warranty
Electrical Specifications
P1- POLLUX - X1 (Input 14-50 Watt) Plastic Body}
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-36 V | 400-1300mA | 12W – 45W |
| 02 | 25-40 V | 300-1200mA | 12W – 45W |
| 03 | 40-60 V | 300-650mA | 12W – 45W |
| 04 | 60-80 V | 200-550mA | 12W – 45W |
| 05 | 80-100 V | 200-400mA | 12W – 45W |
| 06 | 100-120 V | 100-350mA | 12W – 45W |
| |||
| 01 | 25-36 v | 500-1500mA | 18W-55W |
| 02 | 25-40 v | 500-1350mA | 18W-55W |
| 03 | 40-60 v | 400-900mA | 18W-55W |
| 04 | 60-80 v | 300-?00mA | 18W-55W |
| 05 | 80-100 v | 200-550mA | 18W-55W |
| 06 | 100-120 v | 100-450mA | 18W-55W |
