Pollux – X8
Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >88% |
| PF | : | > 0.99 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +90°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 : |
| Connections | : | Wire for Input & Output |
| Dimension (L*W*H)(MM) | : | P1 =200*54*26 |
| P2 =243*63*30 |

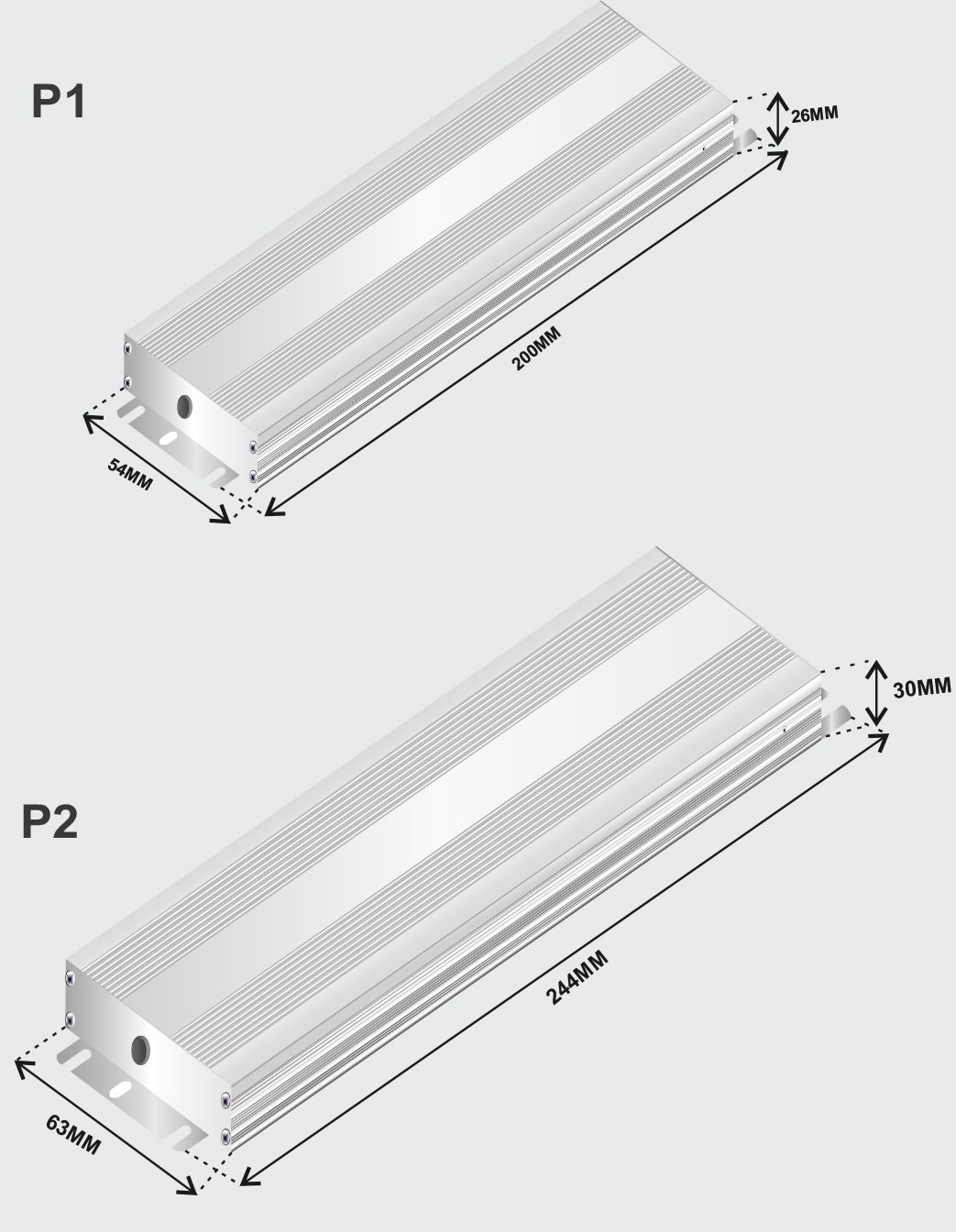

Dimensional Details
Features
- Protection : Output Short Circuit, No load, Under Voltage protection
- Built-in active PFC function
- IP67 design Universal AC input (up to 300 Vac)
- Meet 5 KV Surge Immunity Level (IEC61000-4-5)
- Class I power units I pass LPS
- Suitable for Outdoor LED Lighting I LED Strips
- 3/5 Years Warranty
Electrical Specifications
P1-POLLUX-X8 (Input 115-135 watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 24Vdc | 4.16A | 100W |
| 02 | 24Vdc | 5A | 120W |
P2-POLLUX-X8 (Input 170-450 watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 24Vdc | 6.25A | 150W |
| 02 | 24Vdc | 7.5A | 180W |
| 03 | 24Vdc | 8.33A | 200W |
| 04 | 24Vdc | 10.41A | 250W |
| 05 | 24Vdc | 12.5A | 300W |
| 06 | 24Vdc | 14.58A | 350W |
| 07 | 24Vdc | 16.66A | 400W |
