Rigel – X2
Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | Yes. 110 Vac ( +/- 10 V ) | |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >80% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +75°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13: Ed1206-5 IEC 60950, IS 16104 |
| Connections | : | : Connector for Input & Output |
| Dimension (L*W*H)(MM) | : | 202.5*31.5*27 (MS body) 208*35*30 (Plastic body) |

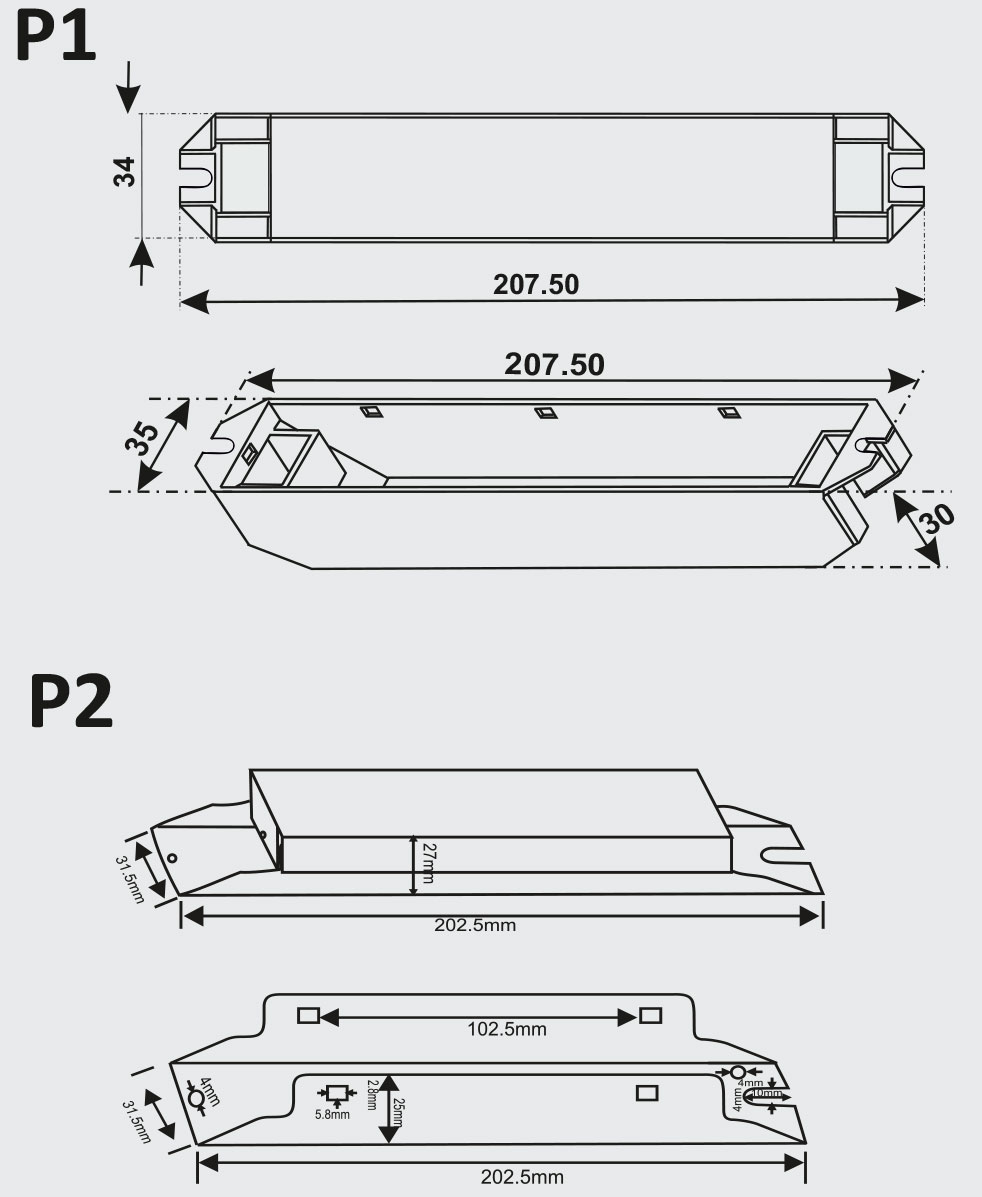

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under Voltage, No Load
- Built-in active PFC function
- IP 20 design Universal AC input (up to 300 Vac)/full range
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Class 1/2 power units I pass LPS
- Suitable for dry, damp & wet location
- Suitable for Indoor/Clean room LED lighting applications
- 3/5 Years Warranty
Electrical Specifications
RIGEL-X2 ( Input 30 - 60 watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 v | 700-1100 mA | 25W – 40W |
| 02 | 40-60 v | 500-650 mA | 25W – 40W |
| 03 | 60-80 v | 300-500 mA | 25W – 40W |
| 04 | 40-55V | 750-1100mA | 30W – 55W |
| 05 | 60-80V | 500-800mA | 30W – 55W |
| 06 | 80-100V | 300-550mA | 30W – 55W |
| 07 | 100-120V | 300-450mA | 30W – 55W |
