Technical Specifications
| Voltage (Un) | : | 240 Vac |
| Operating Voltage Range | : | 110 -300Vac |
| Frequency (Hz) | 50 I 60 Hz | |
| Power Factor @Full Load(PF) | : | >0.95 |
| Power Factor @50% load (PF) | : | >0.90 |
| THD @ Full Load | : | >10% |
| THO @50% Load | : | >20% |
| Efficiency | : | >85% |
| Over Voltage Cutoff | : | 320V (Tole – +/-10V) |
| Automatic Restart | : | 300V |
| Driver Life | 30000 Hrs Ta = 40Deg Tc = 85Deg | |
| Dimension (L*W* H)(MM) | P1 –150*40*28 (Plastic Body) – 20-40W P2 –188*54*37 (Plastic Body) – 45-60W |

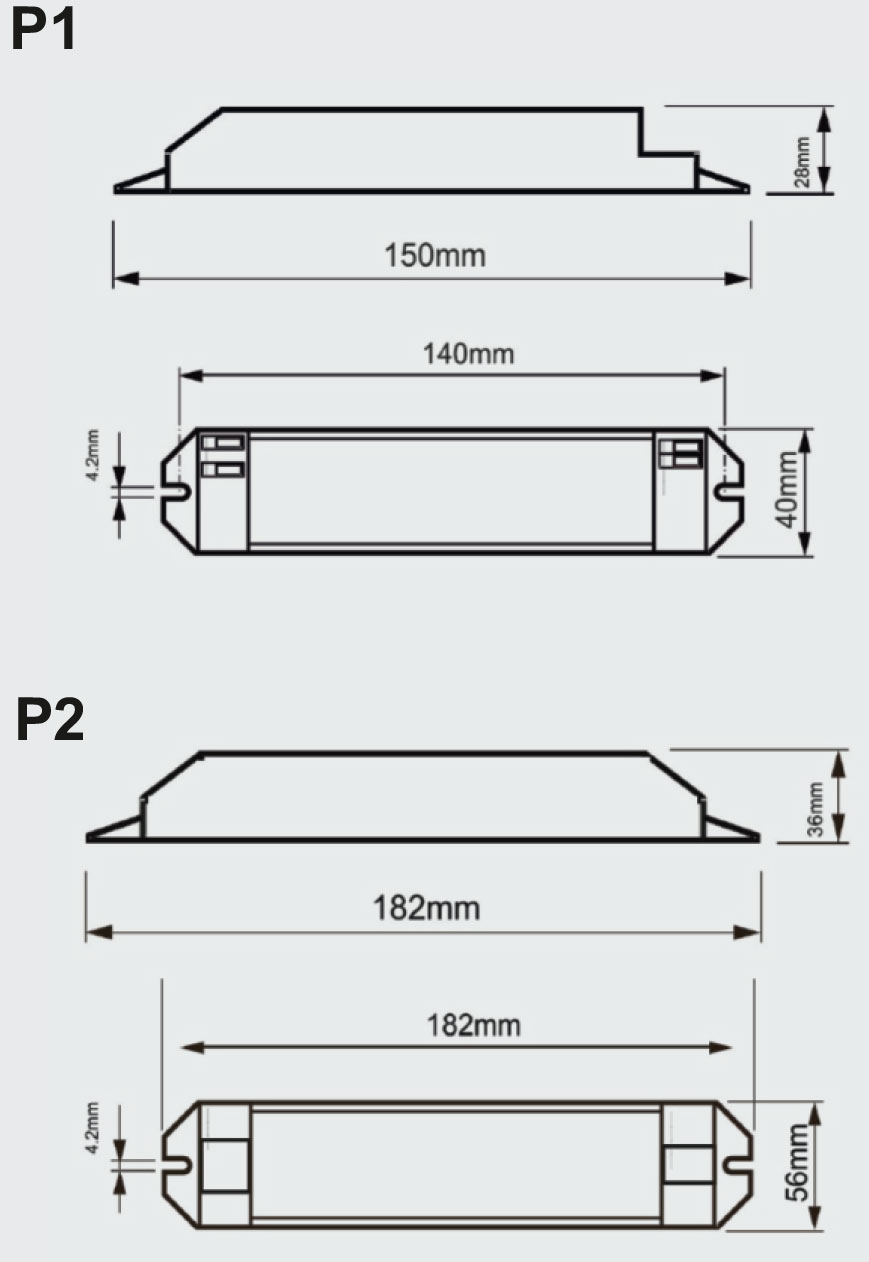

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, No Load
- Wireless Dimming and CCT tuning by RF-2.4G Remote Controllers
- No need to install or attach other controllers
- Meet 4 KV surge immunity level ( IEC61000- 4-5 )
- Groups control: 100 groups individually
- 4 Step dimming and CCT adjusting
- Step-less dimming and CCT Adjusting
- Available with Wi-Fi module IOT connectivity with HRI IOS/Android mobile application
- 3/5 Years Warranty
Electrical Specifications
P1- RIGEL - X7 CCT Linear ( Input 18-40 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 30-40V | 500-750 mA | 18-35W |
| 02 | 40-55V | 300-600 mA | 18-35W |
P2- RIGEL - X7 CCT Linear ( Input 45-60 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 30-40V | 800-1200 mA | 40W-55W |
| 02 | 40-55V | 800-1000 mA | 40W-55W |
