Technical Specifications
| Voltage (Un) | : | 24 Vdc |
| Operating Input Voltage Range | : | 22-30 Vdc |
| Minimum Starting Temp. (ta) | : | 20°c to +50°C |
| Max imun ambient Temp. (tc) | : | +75°C |
| Connections | : | Wires for Input & Output |
| Dimension (L*W*H)(MM) P1 | : | 57*28*21.3 |

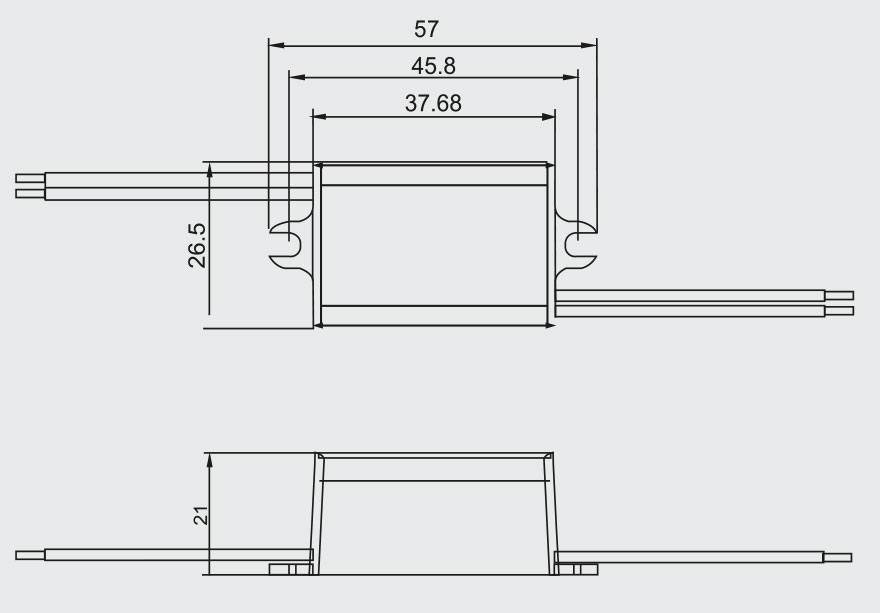

Dimensional Details
Features
- Protection : Short Circuit, No Load
- Thermal Protection
- Operates in buck topology
- IP20/65 Design DC Input Up to 30Vdc
- Suitable for Indoor/Outdoor LED Application
- 3/5 Years Warranty
Electrical Specifications
P1- OGLE - X12 DC-DC ( Input 4-15 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 3-18 V | 200-700 mA | 3W – 13W |
P-2 OGLE - X12 DC-DC Open Driver ( Input 1-6 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 3-9 V | 100-600 mA | 1W – 5W |
