Technical Specifications
| Voltage (Un) | : | 240 Vac |
| Operating Voltage Range | : | 110V -300Vac |
| Frequency (Hz) | : | 50 I 60 Hz |
| Power Factor @Full Load(PF) | : | > 0.95 |
| Power Factor @50% load (PF) | : | >0.90 |
| THO @Full Load | : | <10% |
| THO @50% Load | : | <20% |
| Efficiency | : | >85% |
| Over Voltage Cutoff | : | 320V (Tole – +/-1OV) |
| Automatic Restart | : | 300V |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| Dimension (L*W*H)(MM) | : | 102*66*30 |

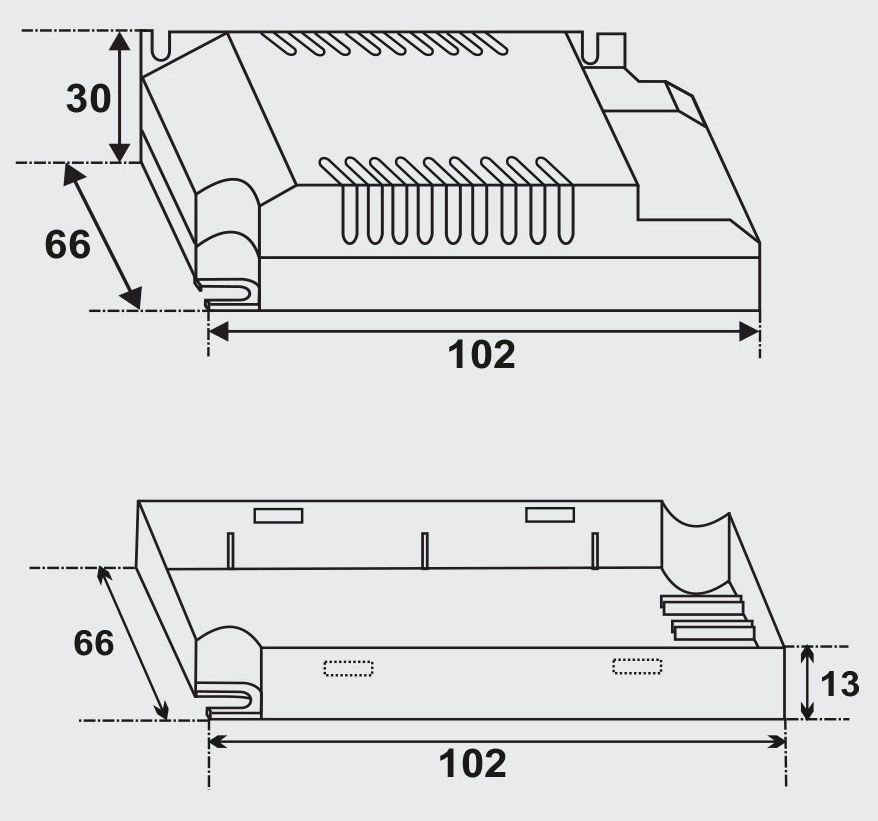

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, No Load.
- Wireless Dimming and CCT tuning by RF-2.4G Remote Controllers
- No need to install or attach other controllers
- Meet 4kV Surge Immunity Level (IEC61000-4-5)
- Groups control: 100 groups individually
- 4 Step dimming and CCT adjusting
- Step-less dimming and CCT Adjusting
- 3/5 Years Warranty
- Available with Wi-Fi module IOT connectivity with HRI IOS/Android mobile application
Special Features
- Integrated Input OVP, when input voltage is higher than 375Vac, turns off the power switch, resumes at input voltage below 320Vac. Enhances anti-surge capability and improves system reliability.
- LED Panel Colors can be changed with the flip of the electric switch. Colours can be set as per desired Cool White or Warm White or Natural White.
Electrical Specifications
P1- OGLE - X9 ( Input 30-50 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 v | 600-1200 mA | 25W – 45W |
| 02 | 40-55 v | 400-800 mA | 25W – 45W |
P2- OGLE – X9 ( Input 30-50 Watt) With DIP Switch
Configuration | ||||
PIN1 | PIN2 | Iout (mA} | Pout (W} | Vout V |
| OFF | OFF | 950mA | 34W | 25-40 v |
| ON | OFF | 1000mA | 36W | |
| OFF | ON | 1100mA | 40W | |
| ON | ON | 1200mA | 44W | |
Configuration | ||||
PIN1 | PIN2 | Iout (mA} | Pout (W} | Vout V |
| OFF | OFF | 500mA | 27W | 40-55 v |
| ON | OFF | 600mA | 33W | |
| OFF | ON | 700mA | 38W | |
| ON | ON | 800mA | 44W | |
