Technical Specifications
| Operating input voltage range | : | 85 -155 Vac/dc; 50/60 Hz |
| Working input voltage | 110Vac; 50/60 Hz/ 110Vdc | |
| Over voltage protection | : | Yes. 200 Vac ( +/- 20 V ) |
| Under voltage protection | : | Yes. 60 Vac ( +/- 20 V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >85% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 250 Vac /Dc for 2 minutes |
| Working temperature (ta) | : | -20°c to + 50°c |
| Case temperature (tc) | : | +75°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 |
| Connections | : | Wire for Input & Output |
| Dimension (L*W*H)(MM) Plastic Body | : | 105*46*30 |
| Metal Body | : | 105*49*30 |

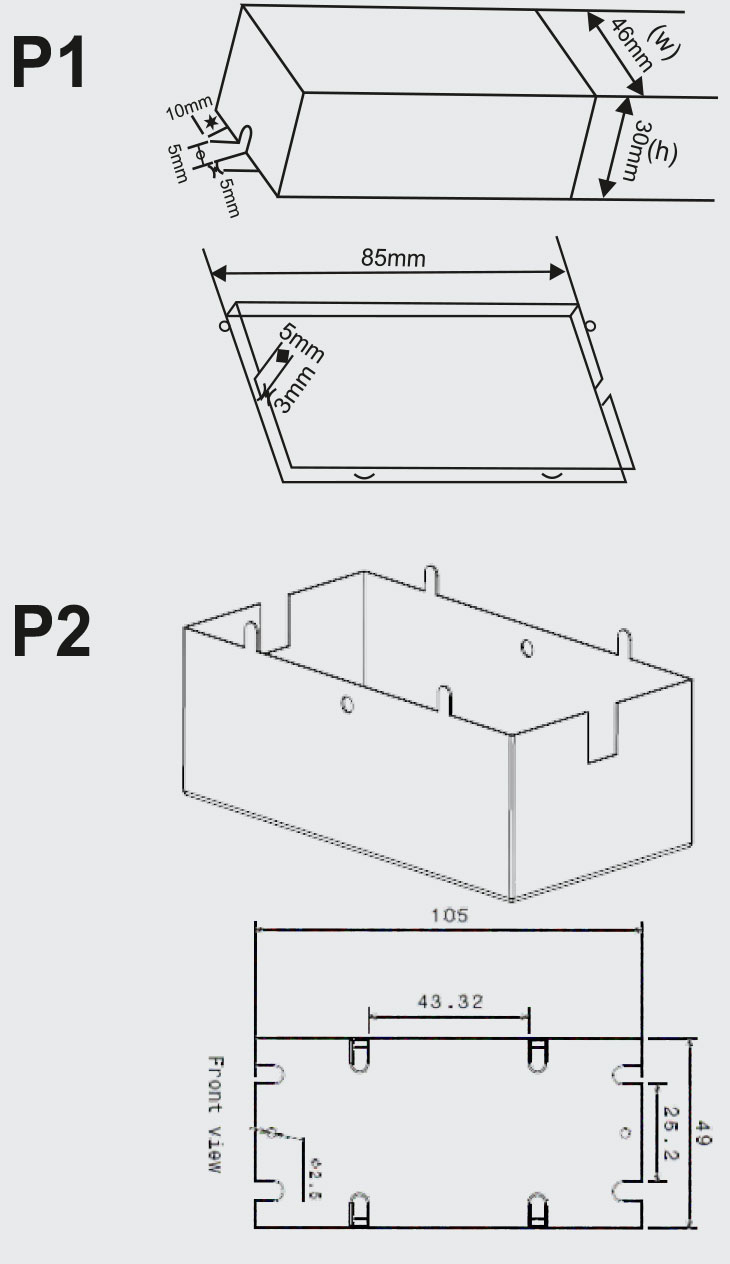

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under Voltage, No load
- Built-in active PFC function
- IP20/65 design AC input (110Vac / 110Vdc)
- Class 1/2 power units I pass LPS
- Meet 4 KV surge immunity level ( IEC61000- 4-5 )
- Suitable for Indoor/Outdoor LED Lighting
- 3/5 Years Warranty
- Reverse polarity protection
Electrical Specifications
P1- POLLUX - X10 ( Input 15-45 Watt) Plastic Body
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40V | 500-1100 mA | 12W-40W |
| 02 | 40-75V | 200-500 mA | 12W-40W |
P2- POLLUX - X10 ( Input 15-45 Watt) Metal Body
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40V | 500-1100 mA | 12W-40W |
| 02 | 40-75V | 200-500 mA | 12W-40W |
