Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 110 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +90°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13),
IEC 61347-2-13 : |
| Connections | : | Wires for Input & Output |
| Dimension (L*W*H)(MM) | : | 100*75*40 |

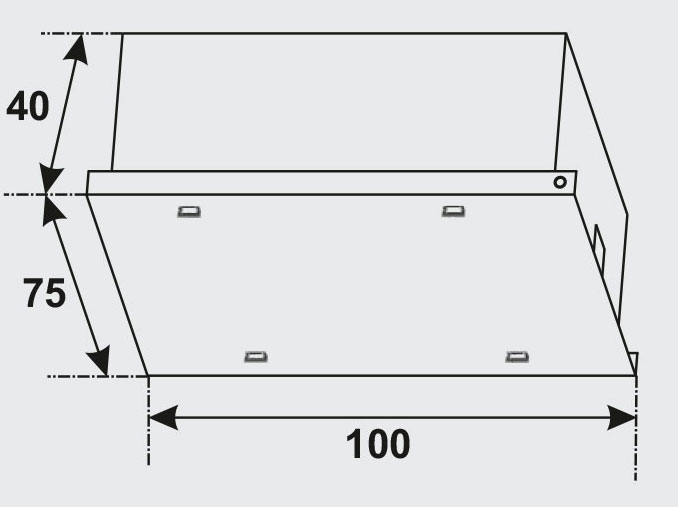

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under voltage, No load
- Built-in active PFC function
- IP65 design Universal AC input (up to 300 Vac)
- Meet 6 KV Surge Immunity Level (IEC61000-4-5)
- Class I power units I pass LPS
- Suitable for Outdoor LED Lighting
- 3/5 Years Warranty
Electrical Specifications
POLLUX - X7 ( Input 50-100 Watt)
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 V | 1400-2400 mA | 45W – 90W |
| 02 | 40-60 V | 1000-1800 mA | 45W – 90W |
| 03 | 60-80 V | 700-1300 mA | 45W – 90W |
| 04 | 80-100 V | 600-1000 mA | 45W – 90W |
| 05 | 100-120 V | 500-800 mA | 45W – 90W |
| 06 | 120-140 V | 300-700 mA | 45W – 90W |
| 07 | 140-160 V | 300-700 mA | 45W – 90W |
