Technical Specifications
| Operating input voltage range | : | 100-300 Vac; 50/60 Hz; 140-300 Vdc |
| Over voltage protection | : | Yes. 320 Vac ( +/- 10 V ) |
| Under voltage protection | : | Yes. 110 Vac ( +/- 10 V ) |
| Thermal protection | : | Yes. 110°c +/- 10°c |
| THD | : | <10% |
| Efficiency | : | >88% |
| PF | : | > 0.98 |
| Standard loss | : | 0.3 Watt |
| Withstand Voltage | : | 440 Vac |
| Working temperature (ta) | : | -20°c to + 65°c |
| Case temperature (tc) | : | +85°c |
| SAFETY standards | : | IS 15885 (PART2/SEC13), IEC 61347-2-13 : |
| Connections | : | Wire for Input & Output |
| Dimension (L*W*H)(MM) Metal Body |
: | 90*47*36 |

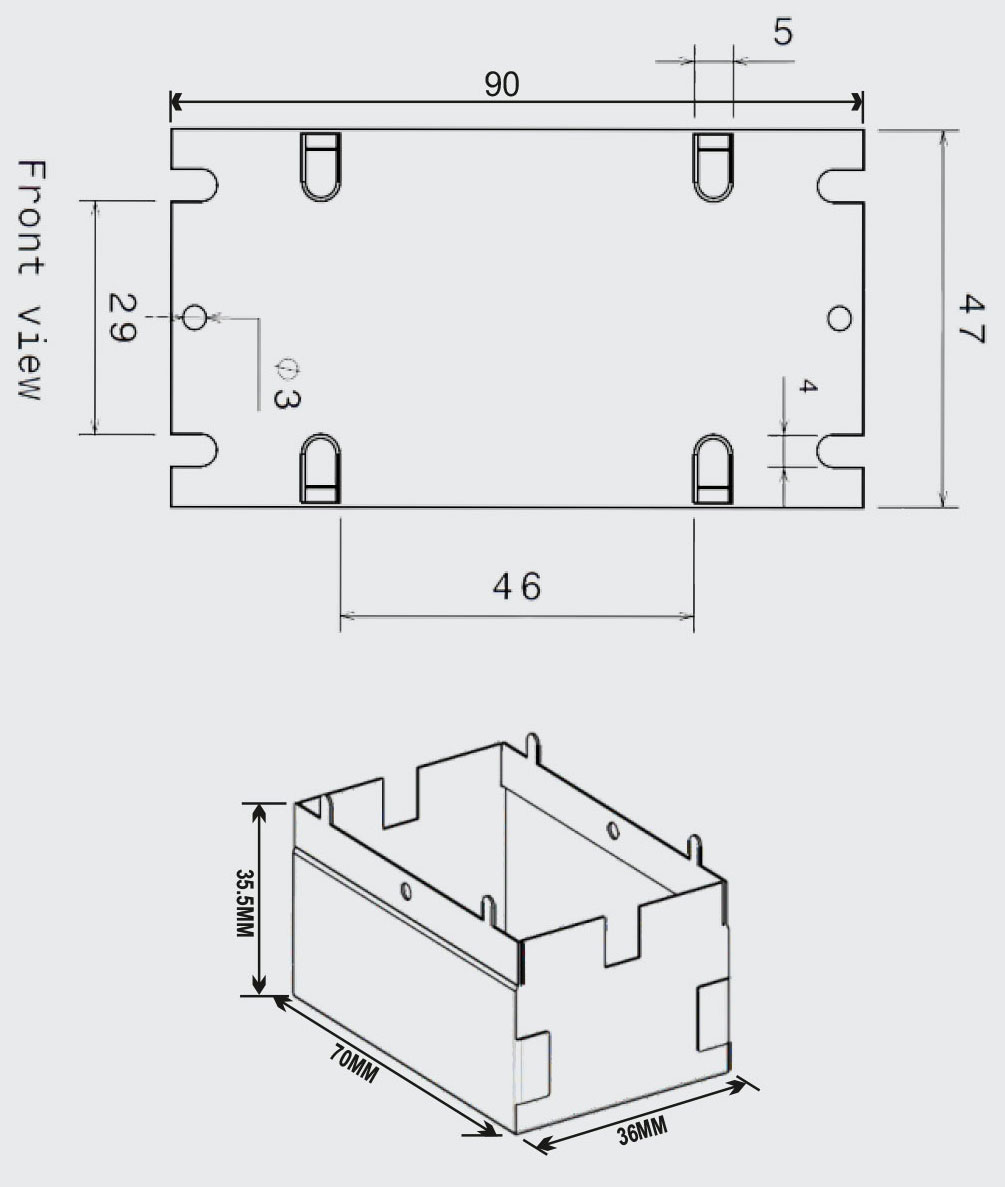

Dimensional Details
Features
- Protection : Output Short Circuit, Over Voltage, Under Voltage, No load
- Built-in active PFC function
- IP65 design Universal AC input (up to 300 Vac)/Full range
- Meet 4 KV Surge Immunity Level (IEC61000-4-5)
- Class I power units I pass LPS
- Suitable for Indoor/Outdoor LED Lighting
- 3/5 Years Warranty
- Optional: 0/1-10V analog dimming with DIP switch/POT for fine output current setting
Electrical Specifications
POLLUX - XS ( Input 75 Watt )
| Serial Number | Output Voltage Min- Max | Output Current Min- Max | Output Wattage Min- Max |
| 01 | 25-40 V | 500-1000 mA | 18W – 40W |
| 02 | 40-60 V | 300-750 mA | 18W – 40W |
| 03 | 60-80V | 200-550 mA | 18W – 40W |
| 04 | 80-100V | 150-450 mA | 18W – 40W |
